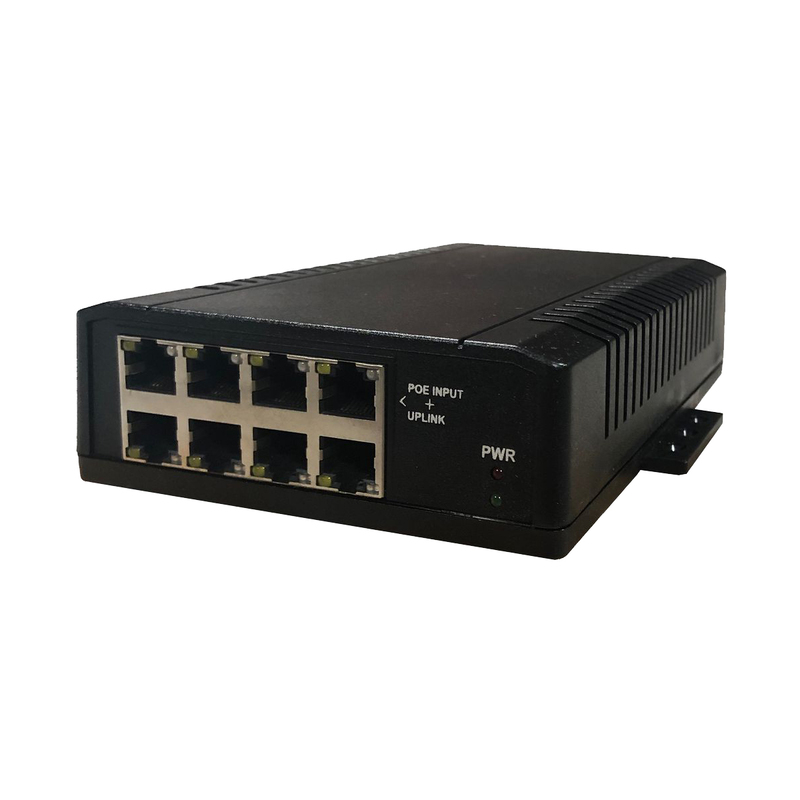

TP-SW8-D
Share :
Features
- High Power 10/100Mb 8 Port PoE Switch
- Remotely Power Equipment thru CAT5 Cable up to 100m
- Extend Ethernet and PoE up to 200m
- Up to 2A per Port
- Built-In Surge Protection
- Automatic MDI/MDI-X Crossover
- High Temperature Operation
- CE and FCC Certification
Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- Power multiple devices from 1 data cable
- PoE Lighting Applications
Description
The TP-SW8-D Power over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power® is a fully automatic
high speed 8 port Ethernet switch. The -NC version is a passive PoE model for devices which are not 802.3af/at
compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC
input power range can be from 12V to 57V. The units can be powered via 2 or 4 pair PoE to port 8 (2A max). TP-SW8-
D has a 2 channel 802.3at input for 70W max PoE input. Both models supply power to the remote device on the
unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the
PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of
primary and backup power sources.
