Voltage Regulator, 10-15VDC IN, 56VDC 250W Regulated OUT, Isolated
Key Features:
• DC to DC converter
• Up to 250W Output
• Din Rail Adapters Included
• Automatic Battery Saving Capabilities
Product Details
Features
- High Output, Short Circuit Protected
- Metal Enclosure, DIN rail mounting
- Industrial Temperature Operation
- Isolated Design
- Low Voltage Disconnect
Applications
- Security Systems
- Remote Power Systems
- Telecom Applications
- Wireless Base Stations
Description

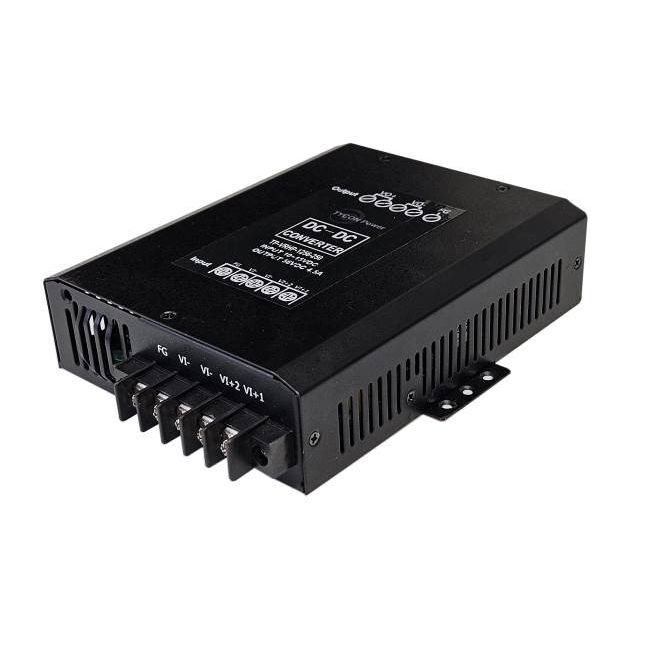

The TP-VRHP-1256-250 DC to DC converters offer high output voltage conversion in a compact metal enclosure.
They have wire terminal inputs and outputs for maximum flexibility. The units come with DIN rail adapters for DIN rail
mounting. They provide power output up to 250W.
The TP-VRHP-1256-250 has a battery saver feature. If voltage falls below 10V the DC to DC converter will turn off to
save battery. As soon as the voltage returns to normal the DC to DC converter will power on
