DC PoE Injector, 11-60VDC IN, 56V 90W 5G 802.3bt PoE OUT, Din Mount
$329.95
Customize
Store Qty
0 Features
DC to DC Converter 11-60VDC Input, 802.3bt 90W Output Up to 5Gigabit Data Passthrough with Surge Protection DIN Rail Mounting Operating Temperature: -40 to +70C Applications
12VDC and 24VDC Remote Power Systems 48VDC or -48VDC Remote Power Systems IEEE802.3bt Industry Standard Device Power from Batteries Short Description
DC PoE Injector, 11-60VDC IN, 56V 90W 5G 802.3bt PoE OUT, Din Mount Long Description

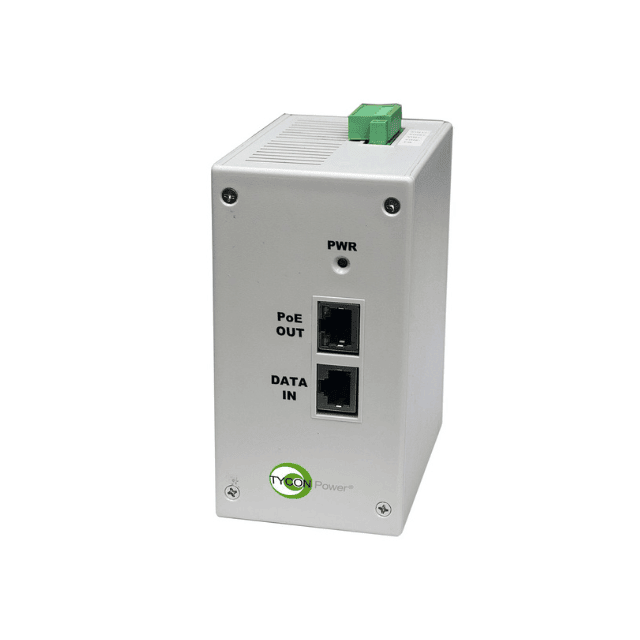

The TPDIN-1256GD-BT is a high power DCDC converter and up to 5Gbps PoE injector with a wide voltage input range (11-60VDC), a wide operating temperature range (-40 to +70C) and a high power 802.3bt 90W output. The unit has dual DC inputs for primary and backup power sources. The input to output is isolated so the unit can accept -48VDC Input, making it compatible with legacy telecom systems. The green DC connector is a locking type that accepts wires up to 12AWG. The “FG” input is used to provide chassis or earth ground. The device is fan-less and uses natural air flow for cooling. It mounts to a standard DIN Rail commonly used in industrial installations. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TPDIN-1256GD-BT%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe
