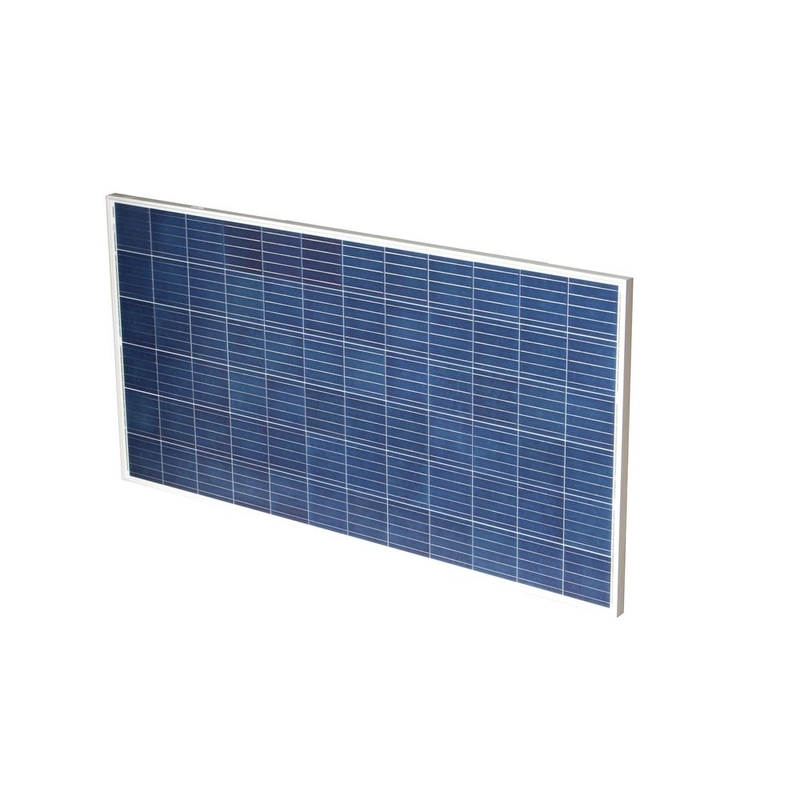

24V 360W Solar Panel with PV cables and connectors
$417.95
Customize
Store Qty
790 Features
High Efficiency with high transparency low iron tempered glass cover Excellent low light performance Up to +3% positive power output tolerance Rugged extruded anodized aluminum frame Sealed for protection from harsh environments 5-year product warranty; 25-year solar cell output warranty Applications
Off-Grid Systems Wireless Base Stations On-Grid Roof Top Systems Surveillance Cameras Outdoor Lighting Pumping Applications Short Description
Tycon Solar® 24V 360W solar panel with outdoor PV cables/connectors for off-grid and remote power systems. Long Description
The TPS-24-360W solar panels are high efficiency 72 cell design with excellent low light performance. The panels are perfect for almost any off-grid or on-grid application. The monocrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded type 6063 alloy aluminum frame with a high transparency low iron tempered glass cover, with anti-reflective coating to enhance solar absorption, and protect the solar cells from harsh environments; hail, wind, snow and ice. The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels and include attached 1.1 meter outdoor cables terminated with standard PV solar connectors. Heavy Duty Construction: • Heavy snow load to 5400Pa which equals approximately 22inch of very heavy wet snow. • High winds to 2400Pa which equals about 140Mph of wind velocity. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TPS-24-360W_Solar_Panels_Spec_Sheet.pdf KnowledgeBase
