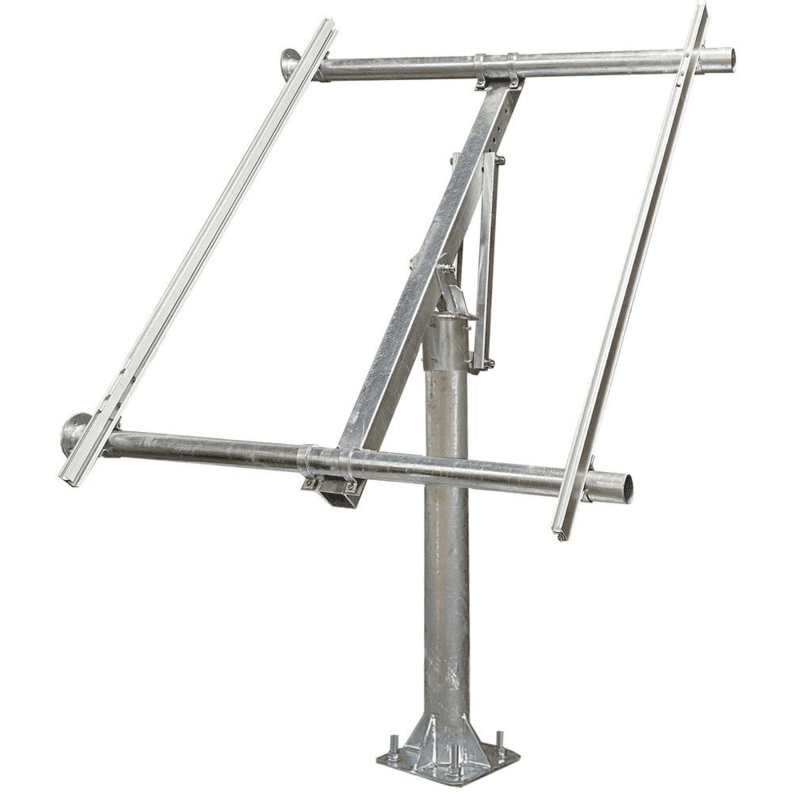

Ground Mount System for two 360W Solar Panels
$1,369.95
Customize
Store Qty
31 Features
Solar panel mount for up to 2 panels (60-72 cell modules, nominally 230–360W) Stainless steel, galvanized steel, and anodized aluminum construction Includes all components required to mount 2 modules Includes integrated equipment ground solution Tilt adjustable from 10 to 65 degrees 45 inches clearance to front of array for snow shedding Includes flanged vertical post and concrete anchors Ships in single crate Applications
720W remote power generation Oil and gas monitoring stations Security monitoring Wireless stations Remote Cabins Grid connected power supplement Short Description
Ground Mount System for two 360W Solar Panels Long Description
Tycon Solar’s versatile Pole Top solution is designed to satisfy the most common small-medium solar power needs, particularly in the wireless and security infrastructure markets. The mount assembles easily and can be used to construct 720Wp (2 x 360Wp modules) stations, whether used to connect directly to a grid with grid tied inverter(s) to offset power usage, or charge a battery bank for remote applications. With modules commonly available up to 360W+, even greater power production can be achieved in a single installation. Made with heavy galvanized steel, anodized aluminum rails and stainless-steel hardware, the structure is designed for many years of durability in harsh environments. With the array centrally balanced on the pole top, manual seasonal tilt or orientation adjustments can be made easily by one person. The 2 panel pole top mount is expandable to 4 panels and 6 panels using available Tycon® adapter kits as your needs grow. See below for adapter kit part numbers. When comparing pole mounts be sure to remember that the Tycon® Pole Top includes the mounting pole and anchors in the price of the system. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TPSM-350X2-TP_Gnd_Mt_for_2_360W_Panels_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000092_TPSM-350x2-TP_Solar_Mount_User_Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/remotepro
