Key Features:
Features
- 60A MPPT Solar Controller
- MPPT Temp Compensated Charging (99.5% Efficient)
- Included Bluetooth Interface for Monitor and Control
- OLED Blue Display for higher visibility in varying light conditions
- Auto-ranging 12V, 24V,36V or 48V Battery Arrays
- Adjustable Battery Charging Current
- Multimode Load Operation – 4 selectable modes
- Soft Start 30A Load Output to Power High Capacitive Loads
- TVS lightning protection, Industrial Temperature Range
- Low self-consumption <1.2W
Applications
- Remote Power Systems
- Solar Lighting
- Solar Power Applications
- Telecom Power Applications
Description

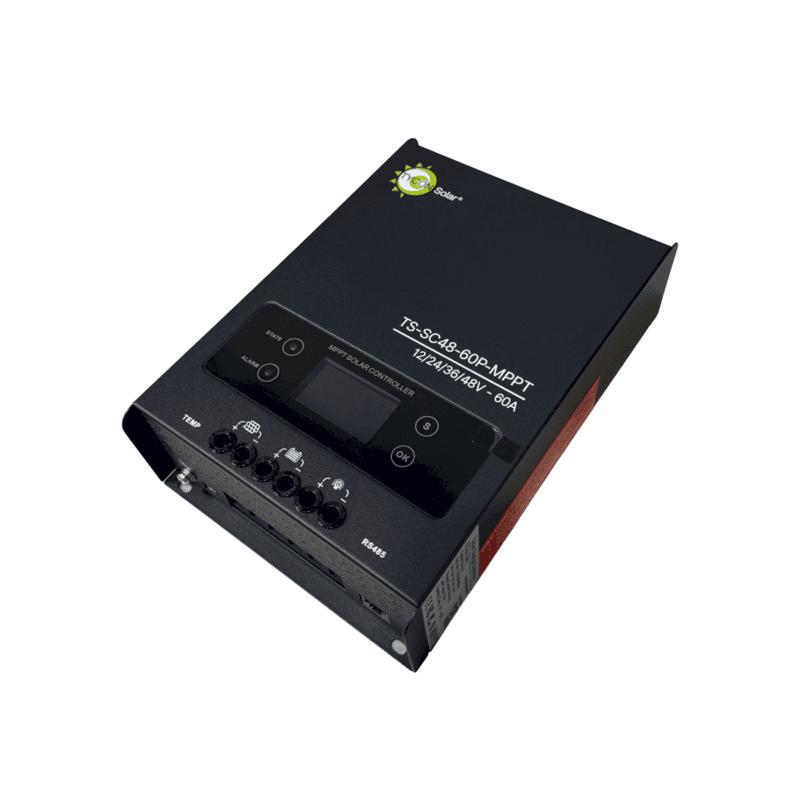

The Tycon Solar® TS-SC48-60P-MPPT solar controllers are MPPT (Maximum Power Point Tracking) temperature compensated battery charging controllers with RS485 interface. A Bluetooth Adapter and battery temperature probe is included. The controllers are auto-ranging to accommodate 12V, 24V, 36V and 48V battery systems. They are designed to charge Sealed (AGM), GEL, Flooded, and Lithium batteries. They also have a USER setting for customizable battery charge settings. They have an integral OLED blue display that shows Battery charging parameters. The display turns off automatically to save power. Press the OK button to view.
They have multiple load operating modes which can be set through the Mobile or PC app. On/Off Manual Mode, PV Voltage Control Mode, Dual-Time Control Mode, PV & Time Control Mode. Load modes are not settable from the front panel. Default is ON/Off Manual Mode.
The 30A load output has a soft start feature so it can smoothly and reliably power up high capacitance loads. The load can be turned on/off from the front panel or via the PC or Mobile Apps. They have full electronic protections for surge, short circuit, over current, reverse polarity and over-temperature. The built-in over-discharge protection and low self consumption ensures the battery is not over-discharged, which greatly increases the life of the batteries. All protections are auto-recovery.
The units are protected against lightning strikes with TVS diode protection. They operate over a wide industrial temperature range. The cooling fan is thermostatically controlled to only run when needed.
Connections are via 6 screw terminals for wire size up to 4AWG. The controllers are internally fused for protection, but we recommend always using an external fuse between the controller and the battery. The controller can be mounted to a flat plate using 2 or 4 screws.
