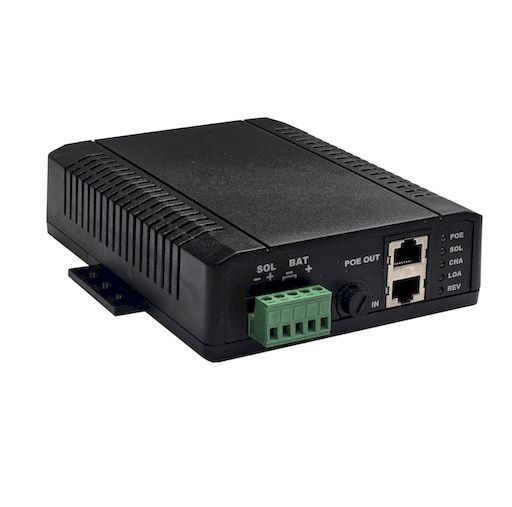

TS-SCPOE-12AT-G
Key Features:
Share :
Features
- Dual Input - Charges 12/24V Batteries from Solar Panel and/or 802.3at/bt PoE
- Supports up to 120W/240W Total Device Load
- 802.3at 35W PoE Output
- 10A Aux Output (VOUT = battery voltage)
- Compact and high temperature operation
- Low self consumption < 1.2W
- DIN Rail mount kit included
Applications
- Remote Power Systems; Surveillance, Sensors
- Wireless Stations ; AP / Client / Repeaters
- UPS Systems ; Lighting, Fences, Gates
Description
Tycon Solar® SCPOE PoE/Solar charge controllers are designed to keep critical systems running by charging batteries using two power sources: Power over Ethernet (PoE) and solar panels. This dual-input setup ensures reliability and uninterrupted operation. When sunlight is available, the controller prioritizes solar power to reduce reliance on grid electricity.
Key features:
• Built-in PoE Injector: Delivers a steady 56VDC, 35W output via a Gigabit 802.3at PoE connection.
• Comprehensive Protections: Guards against short circuits, reverse current, overvoltage, overcharging, and over-discharging (LVD).
• Status Indicators: Five LEDs show whether the power source is PoE or solar, if the battery is charging, if the load output is active, and if the battery is incorrectly connected.
• Connections:
o Solar, battery, and auxiliary load connections use five screw terminals for wires up to 10AWG.
o PoE input and output use two shielded RJ45 connectors.
• Fuse Protection: Includes a replaceable 12A fuse.
• Power Capacity:
o TS-SCPOE-12AT-G: Supports up to 120W for connected devices.
o TS-SCPOE-24AT-G: Supports up to 240W for connected devices.
This setup ensures efficient, reliable power management for demanding applications.
