UPSPro 24/48V 17,280Wh 1440Ah Battery Outdoor Backup Power Sys, 24/48VDC 30A Out, 60A MPPT Charge Ctrl w/Status Disp and Load Ctrl, 120/240VAC In 72V900W Batt Charger, Gnd Mt Alum Encl/Gasketed Lock Lid / Vents
$8,499.95
Customize
Store Qty
6 Features
Configurable as 24V or 48VDC System Weatherproof, UV resistant, Aluminum Outdoor Enclosure Powered from AC Mains Power and/or Solar Interior Space for Customer Electronics Ground Mounting Isolates Connected Equipment from Power Line Surges High Quality Sealed Pure Lead Carbon AGM Batteries Advanced Battery Charge Controller Protects Against Overcharge and Over Discharge Applications
Wireless Base Stations and Clients Mission Critical Power Wireless Bridge and Repeaters Surveillance Cameras Remote Sensors Backup Power Systems Short Description
UPSPro 24/48V 17,280Wh 1440Ah Battery Outdoor Backup Power Sys, 24/48VDC 30A Out, 60A MPPT Charge Ctrl w/Status Disp and Load Ctrl, 120/240VAC In 72V900W Batt Charger, Gnd Mt Alum Encl/Gasketed Lock Lid / Vents Long Description

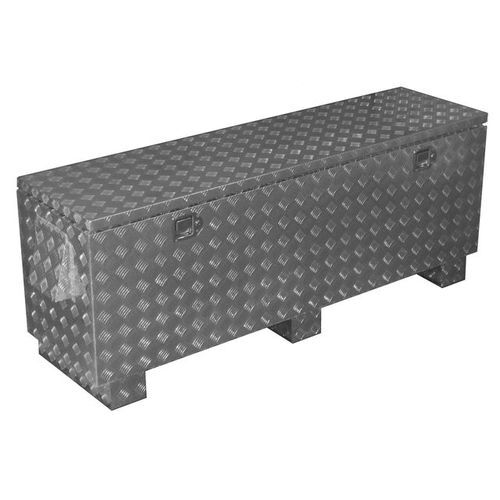

The UPSPro® UPAL24/48-xxx-900 outdoor backup power systems are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time. Features include 24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or overdischarging of the valve regulated sealed lead acid pure lead carbon AGM batteries. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C. There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure. Technical Links
Spec Sheet http://www.tyconsystems.com//specsheets/UPAL24_48-xxx-900%20%20Backup%20Power%20System%20900W%20Spec_Sheet.pdf User Guide http://www.tyconsystems.com//usermanuals/8000107_UPAL24-48-900_MPPT_Ctrl_user_guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/upspro
