Key Features:
Features
- Low Cost Complete Backup Power Solution for On-Grid or Off-Grid operation. Fully Assembled. Sets up in minutes.
- Weatherproof Outdoor Locking Enclosure with High Performance Sealed Lead Acid or Wide Temp Lithium Battery. Thermostatically Controlled Ventilation.
- Solar Ready™ MPPT Temperature Compensated Solar Charge Controller: 60A Solar, 30A Load, 99% Efficiency.
- Complete Remote Monitoring and Control – Email Alerts and Manual/Automatic Reboot. Monitor Solar Voltage & Current, Battery Voltage & Current, Load Current, Temperature. Disconnect Load Power.
- Pneumatic Four Position (8ft, 11ft, 14ft, 17ft) Locking Aluminum Extension Mast for up to 110lb load. Raises fully in about 90 seconds using the integrated pneumatic pump.
- Regulated 12VDC, 56VDC and Un-regulated 24VDC Output at Top of Mast. Includes surge protected Gigabit 5 port PoE Layer 2 Switch with one 90W 802.3bt PoE Port, three 802.3at PoE+ Ports and one 24V Passive PoE Port, all at top of pole. Dual CAT6 Shielded connections between top of mast and battery enclosure.
- Protected, Secured Wiring and Blue Strobe Lights to deter vandals.
- Dual Charging. Convenient Backup Generator or Grid Power Port. Charge batteries using solar or AC power.
- Can be Moved with Forklift or Pallet Jack. Four Support / Leveling Jacks.
- Extra Interior Enclosure Space
- Galvanized Welded Steel Tube/Plate Construction.
Applications
- Construction Sites
- Equipment Yards
- Remote Lighting
- Agriculture Applications
- Surveillance Cameras
- Off-Grid Power on Demand
- Emergency Power
- Wireless Equipment
- Concerts and Festivals
- Air Quality Sensors
- Remote Pumping
- Forest Fire Monitoring
Description

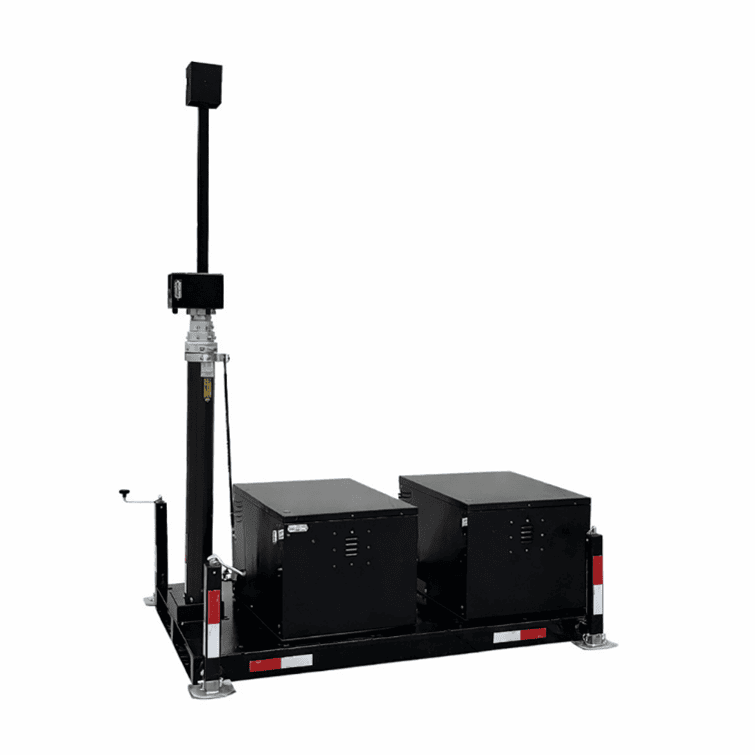

The UPS24 Skid Series delivers reliable off-grid power for remote equipment that requires dependable energy and quick deployment, such as wireless infrastructure, surveillance systems, environmental monitoring, and temporary job sites. Built on a rugged skid platform, the system provides a stable and portable power solution that can be easily transported and installed in remote locations.
Each system integrates high-efficiency solar panels mounted on a heavy-duty adjustable frame, paired with an advanced MPPT solar charge controller to maximize energy harvest and battery performance. The skid platform allows for quick placement using a forklift or pallet jack, and the system arrives fully assembled so it can begin powering equipment within minutes of deployment.
Inside the weatherproof locking enclosure, a large battery bank provides dependable energy storage for continuous operation when sunlight is limited. Integrated monitoring and control capabilities allow operators to track solar input, battery status, load consumption, and system temperature, with options for remote alerts and automated power management.
The UPS24 Skid Series combines durable construction, intelligent power management, and flexible deployment into a turnkey off-grid power platform. It enables reliable power for cameras, radios, sensors, and other critical equipment in remote environments where grid power isn’t available.
